|Manufacturer||Willys & Ford Motor Company|
8,690 other (1941–1945)
can be piled for shipping, plastic steering wheel, steel seats, hinged passenger front seat, slitted War-time front parking lights. |
•Gauges: speedometer 0 - 60mph, Temp 0 - 220F, Amp +30/-30A, Oil pressure, map light. Failsafe main light switch pushbutton (can't accidentally pull mainlights on).
4-cyl. side valves, 134 cu in (2.2 L) (2199 cc), 60 hp. |
•Other: Oil Filter; oil filled mesh; 1 throat carburetor, manual choke, exhaust/intake at driver's side, intake heated via exhaust/bimetal control spring. 6 Volt DC generator, Failsafe automatic fuse.
3-speed + reverse T-84 transmission|
2-speed Model 18 transfer case;
Transfer case2 selections: 2wd Hi , 4WD Hi, 4WD Lo
|Wheelbase||80 inches (203 cm) leaf springs, shock absorbers in all 4; full hydraulic brakes in all 4; handbrake assembly at rear of transfer case|
|Length||131 inches (333 cm)|
|Width||62 inches (157.5 cm)|
72 inches (183 cm) with top up|
reducible to 52 inches (132 cm)
|Curb weight||2,293 lb(1040 kg)|
|Related||Ford GPA 'Seep'|
The Willys MB US Army Jeep (formally the Truck, 1/4 ton, 4x4) and the Ford GPW, was manufactured from 1941 to 1945. The small four-wheel drive utility vehicles are considered the iconic World War II Jeep, and inspired many similar light utility vehicles. Over the years, the World War II Jeep later evolved into the "CJ" civilian Jeep. Its counterpart in the German army was the Volkswagen Kübelwagen, also based on a small automobile, but which used an air-cooled engine and lacked 4 wheel drive.
History[edit | edit source]
During World War I there were limited attempts to mechanize military forces. The US Army had already used 4x4 trucks supplied by the Four Wheel Drive Auto Co. (FWD). By the time of World War II, the United States Department of War was still seeking a light, cross-country reconnaissance vehicle.
As tensions were heightening around the world in the late 1930s, the U.S. Army asked American automobile manufacturers to tender suggestions to replace its existing, aging light motor vehicles, mostly motorcycles and sidecars but also some Ford Model T's. This resulted in several prototypes being presented to army officials, such as five Marmon-Herrington 4x4 Fords in 1937, and three Austin roadsters by American Bantam in 1938 (Fowler, 1993). However, the US Army's requirements were not formalized until July 11, 1940, when 135 U.S. automotive manufacturers were approached to submit a design conforming to the army's specifications for a vehicle the World War II technical manual TM 9-803 described as "... a general purpose, personnel, or cargo carrier especially adaptable for reconnaissance or command, and designated as 1/4-ton 4x4 Truck."
By now the war was underway in Europe, so the Army's need was urgent and demanding. Bids were to be received by July 22, a span of just eleven days. Manufacturers were given 49 days to submit their first prototype and 75 days for completion of 70 test vehicles. The Army's Ordnance Technical Committee specifications were equally demanding: the vehicle would be four-wheel drive, have a crew of three on a wheelbase of no more than 75 (later 80) inches and tracks no more than 47 inches, feature a fold-down windshield, 660 lb payload and be powered by an engine capable of 85 ft·lbf (115 N·m) of torque. The most daunting demand, however, was an empty weight of no more than 1,300 lb (590 kg).
Only three companies entered: American Bantam Car Company, Ford Motor Company and Willys-Overland Motors. Though Willys-Overland was the low bidder, Bantam received the bid, being the only company committing to deliver a pilot model in 49 days and production examples in 75. Under the leadership of designer Karl Probst, Bantam built their first prototype, dubbed the "Blitz Buggy" (and in retrospect "Old Number One"), and delivered it to the Army vehicle test center at Camp Holabird, Maryland on September 23, 1940. This presented Army officials with the first of what eventually evolved into the World War II U.S. Army Jeeps: the Willys MB and Ford GPW.
Since Bantam did not have the production capacity or fiscal stability to deliver on the scale needed by the War Department, the other two bidders, Ford and Willys, were encouraged to complete their own pilot models for testing. The contract for the new reconnaissance car was to be determined by trials. As testing of the Bantam prototype took place from September 27 to October 16, Ford and Willys technical representatives present at Holabird were given ample opportunity to study the vehicle's performance. Moreover, in order to expedite production, the War Department forwarded the Bantam blueprints to Ford and Willys, claiming the government owned the design. Bantam did not dispute this move due to its precarious financial situation. By November 1940, Ford and Willys each submitted prototypes to compete with the Bantam in the Army's trials. The pilot models, the Willys Quad and the Ford Pygmy, turned out very similar to each other and were joined in testing by Bantam's entry, now evolved into a Mark II called the BRC 60. By then the U.S. and its armed forces were already under such pressure that all three cars were declared acceptable and orders for 1,500 units per company were given for field testing. At this time it was acknowledged the original weight limit (which Bantam had ignored) was unrealistic, and it was raised to 2,160 pounds (980 kg).

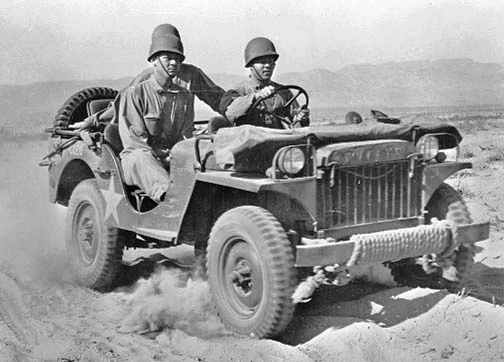

For these respective pre-production runs, each vehicle received revisions and a new name. Bantam's became the BRC 40, and the company ceased motor vehicle production after the last one was built in December 1941. After reducing the vehicle's weight by 240 pounds, Willys' changed the designation to "MA" for "Military" model "A". The Fords went into production as "GP", with "G" for a "Government" type contract and "P" commonly used by Ford to designate any passenger car with a wheelbase of 80 inches.
By July 1941, the War Department desired to standardize and decided to select a single manufacturer to supply them with the next order for another 16,000 vehicles. Willys won the contract mostly due to its more powerful engine (the "Go Devil") which soldiers raved about, and its lower cost and silhouette. The design features the Bantam and Ford entries had which were an improvement over Willys' were then incorporated into the Willys car, moving it from an "A" designation to "B", thus the "MB" nomenclature. Most notable was a flat wide bonnet, adapted from Ford GP.
By October 1941, it became apparent Willys-Overland could not keep up with production demand and Ford was contracted to produce them as well. The Ford car was then designated GPW, with the "W" referring to the "Willys" licensed design. During World War II, Willys produced 363,000 Jeeps and Ford some 280,000. Approximately 51,000 were exported to the U.S.S.R. under the Lend-Lease program.
A further 13,000 (roughly) amphibian jeeps were built by Ford under the name GPA (nicknamed 'Seep' for Sea Jeep). Inspired by the larger DUKW, the vehicle was produced too quickly and proved to be too heavy, too unwieldy, and of insufficient freeboard. In spite of participating successfully in the Sicily landings (July 1943) most GPAs were routed to the U.S.S.R. under the Lend-Lease program. The Soviets were sufficiently pleased with its ability to cross rivers to develop their own version of it after the war (GAZ-46).
Origin of the term "jeep"[edit | edit source]
- Main article: Jeep#Origin_of_the_term_.22jeep.22
One account of the origin of the term "jeep" begins when the prototypes were being proven at military bases. The term "jeep" was used by Army mechanics for any untried or untested vehicles.
Another likely factor in the popularization of the jeep name came from the fact that the vehicle made quite an impression on soldiers at the time, so much so that they informally named it after Eugene the Jeep, a character in the Popeye cartoons created by E. C. Segar. Eugene the Jeep was Popeye's "jungle pet" and was "small, able to move between dimensions and could solve seemingly impossible problems."
In early 1941, Willys-Overland staged a press event in Washington, D.C., having the car demonstrate its prowess by driving up the Capitol steps. Irving "Red" Hausmann, a test driver on the Willys development team who had accompanied the car for its testing at Camp Holabird, had heard soldiers there referring to it as a jeep. He was enlisted to go to the event and give a demonstration ride to a group of dignitaries, including Katherine Hillyer, a reporter for the Washington Daily News. When asked by the reporter, Hausmann too called it a Jeep. Hillyer's article appeared in the newspaper on February 20, 1941, with a photo showing a jeep going up the Capitol steps and a caption including the term 'jeep'. This is believed to be the most likely cause of the term being fixed in public awareness. Even though Hausmann did not create or invent the word Jeep, he very well could be the one most responsible for its first news media usage.
The name Jeep has also been thought to come from Fords version called the GP, therefore Gee P, which is possibly why there were legal matters with the name
Grille[edit | edit source]
Willys made its first 25,000 MB Jeeps with a welded flat iron "slat" radiator grille. It was Ford who first designed and implemented the now familiar and distinctive stamped, slotted steel grille into its cars, which was lighter, used fewer resources, and was less costly to produce. Along with many other design features innovated by Ford, this was adopted by Willys and implemented into the standard World War II Jeep by April 1942.
Even today, some 68 years later, Jeep's makers proudly retain the automobile's historical connection to the visage of its predecessors by using a trademarked grille featuring a standard number of vertical openings or 'slots'. However, in order to be able to get theirs trademarked, Willys gave their post-war jeeps seven slots instead of Ford's nine-slot design. Through a series of corporate take-overs and mergers, AM General Corporation ended up with the rights to use the seven-slot grille as well, which they in turn extended to Chrysler when it purchased the entire AMC Jeep line in 1987.
Postwar[edit | edit source]
Ford sued Willys for the rights to the term “Jeep" after the war and lost, leaving Willys with full rights to the nameTemplate:Fact. Afterward, Willys took its four-wheel drive vehicle to the public with its CJ (Civilian Jeep) versions, making these some of the first mass-produced 4x4 civilian vehicles. In 1948, US Federal Trade Commission agreed with American Bantam, that the idea of creating the Jeep was originated and developed by the American Bantam in collaboration with some US Army officers. The commission forbade Willys from claiming directly or by implication, that it created or designed the Jeep, and allowed it only to claim, that it contributed to the development of the vehicle. However, American Bantam went bankrupt by 1950, and Willys was granted the "Jeep" trademark in 1950.
The first CJs were essentially the same as the MB, except for such alterations as vacuum-powered windshield wipers, a tailgate (and therefore a side-mounted spare tire), and civilian lighting. Also, the civilian jeeps had amenities like naugahyde seats, chrome trim, and a variety of colors. Mechanically, a heftier T-90 transmission replaced the Willys MB's T84 in order to appeal to the originally considered rural buyers demographic.
Before the Willys-Overland company was absorbed into other companies over the years - it is currently called Jeep and is part of Chrysler LLC - the company supplied the War Department as well as friendly nations with military jeeps for several more decades.
In 1950, the first postwar military jeep, the M38 (or MC), was launched, based on the 1949 CJ-3A. In 1953, it was quickly followed by the M38A1 (or MD), featuring an all-new "round-fendered" body in order to clear the also new, taller, Willys Hurricane engine. This jeep was later developed into the CJ-5 launched in 1955. Similarly, its ambulance version, the M170 (or MDA), featuring a 20-inch wheelbase stretch, was later turned into the civilian CJ-6.

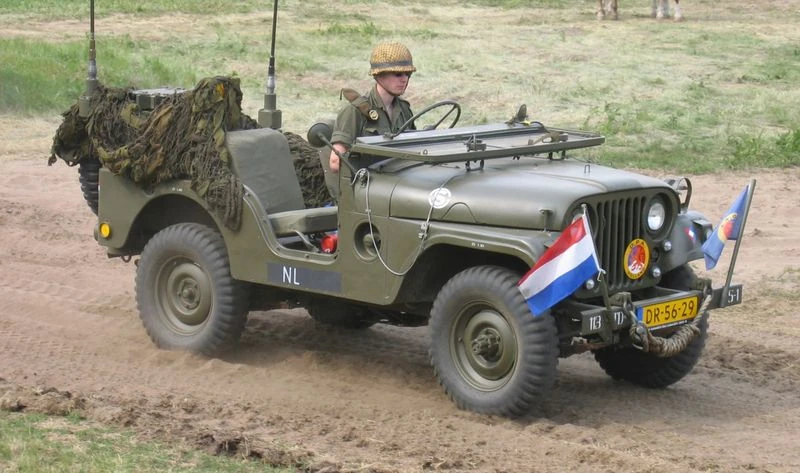

Before the CJ-5, Willys offered the public a cheaper alternative with the taller F-head engine in the form of the CJ-3B, a CJ-3A body with a taller hood. This was quickly turned into the M606 jeep (mostly used for export, through 1968) by equipping it with the available heavy-duty options such as larger tires and springs, and by adding black-out lighting, olive drab paint, and a trailer hitch. After 1968, M606A2 and -A3 versions of the CJ-5 were created in a similar way for friendly foreign governments.
Licenses to produce CJ-3Bs were issued to manufacturers in many different countries, and some, such as the Mahindra in India, continue to produce them in some form or another to this day. The French army, for instance, produced its Willys MB by buying the Willys license to enable the manufacture of their Hotchkiss M201.
The World War II Jeep inspired many imitations. Creations from competing manufacturers such as Land Rover, Toyota, Nissan, Mitsubishi, Suzuki, and a few others all owe their beginnings in the 4x4 world to the inspiration of the military Jeep.
The compact military jeep continued to be used in the Korean and Vietnam Wars. In Korea, it was mostly deployed in the form of the MB but also introduced in 1952 and 53 the M38 and M38A1, all direct descendants of the Willys MB. In Vietnam, the most used jeep was the then newly designed Ford M151 MUTT, which featured such state-of-the-art technologies as a unibody construction and all around independent suspension with coil-springs. Apart from the mainstream of - by today's standards - relatively small jeeps, an even smaller vehicle was developed for the US Marines, suitable for airlifting and manhandling, the M422 'Mighty Mite'.
Eventually, the U.S. military decided on a fundamentally different concept, choosing a much larger vehicle that not only took over the role of the jeep, but also replaced all other light military wheeled vehicles: the HMMWV ("Humvee").
In 1991, the Willys-Overland Jeep MB was designated an International Historic Mechanical Engineering Landmark by the American Society of Mechanical Engineers.
Postwar Conversions[edit | edit source]
Starting in 1950, a Jeep-engined utility vehicle was produced by Autoar and from 1951, a rather attractive new sedan appeared, using the same 2199cc Jeep engine and transmission. It was fitted with overdrive to compensate for the Jeep’s low axle ratio. In 1952, a new overhead valve 3-litre six-cylinder was announced, but was probably never built. At that time, Dusio returned to Italy. In the 1950s, production was sporadic, and models built included a station wagon with a Jeep-type 1901cc engine and licensed manufacture of the German NSU Prinz.
Reproduction[edit | edit source]
In the Philippines[edit | edit source]
When American troops began to leave the Philippines at the end of World War II, hundreds of surplus jeeps were sold or given to local Filipinos. The Filipinos stripped down the jeeps to accommodate several passengers, added metal roofs for shade, and decorated the vehicles with vibrant colors and bright chrome hood ornaments.
The jeepney rapidly emerged as a popular and creative way to re-establish inexpensive public transportation, which had been virtually destroyed during World War II. Recognizing the widespread use of these vehicles, the Philippine government began to place restrictions on their use. Drivers now must have specialized licenses, regular routes, and reasonably fixed fares.
Production[edit | edit source]
|Bantam Mk II / BRC-60||1940||70|
|Willys MB||1942–1945||361,339 (335,531 + 25,808 'slats')|
|World War II Total||1940–1945||647,925|
|Ford GPA 'Seep'||1942–1943||12,778|
|Willys M38 (MC)||1950–1952||61,423|
|Willys M38A1 (MD)||1952–1957||101,488|
|Willys M606 (CJ-3B)||1953–1968||? (part of 155,494 CJ-3B's produced)|
